EVISUN易成电子DC-DC模块电源K78xxM-1000R3系列

Release time：2025-08-06
author：AMEYA360
source：EVISUN易成电子
reading：464

　　EVISUN易成电子的DC-DC模块电源K78xxM-1000R3系列，宽电压输入，非隔离稳压单路输出。

　　产品特点

　　效率高达96%

　　空载输入电流低至0.3mA

　　可持续短路保护

　　支持负输出

　　引脚兼容LM78xx系列三端线性稳压器

　　工作温度范围:-40C~+85C

　　可根据客户需求设计特殊规格产品

　　应用范围

　　K78xxM-1000R3系列是高效率的开关稳压器，是LM78xx系列三端线性稳压器的理想替代品。它效率高，损耗小，使用时无需外加散热片。产品可广泛应用于工控、电力、仪表等多个行业。

　　产品外观尺寸及引脚定义、建议印刷版图

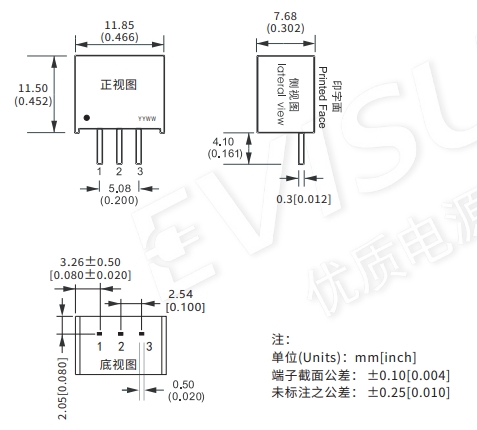

　　(1)外观尺寸

EVISUN易成电子DC-DC模块电源K78xxM-1000R3系列

　　(2)引脚定义

EVISUN易成电子DC-DC模块电源K78xxM-1000R3系列

　　(3)建议印刷版图

EVISUN易成电子DC-DC模块电源K78xxM-1000R3系列

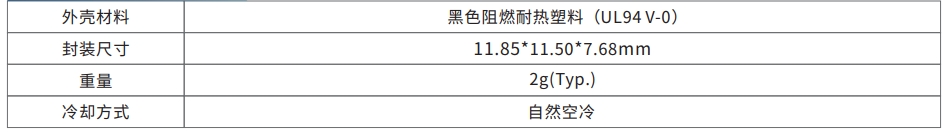

　　产品物理特性

EVISUN易成电子DC-DC模块电源K78xxM-1000R3系列
