线易微：CMP6713HV隔离电源驱动芯片

Release time：2025-07-08
author：AMEYA360
source：线易微
reading：194

　　线易微CMP6713HV是支持6.5V-30V输入，带使能和电阻选频功能的定压输入隔离电源驱动芯片。

　　01 产品简介

　　CMP6713HV是全桥式隔离电源驱动芯片，芯片内部集成两个N型功率MOSFET和两个P型功率MOSFET，通过内部振荡器提供具有精准时序和死区时间的互补驱动信号。

　　驱动芯片搭配配套的变压器，可以实现输入电压6.5V-30V，输出功率不超过3.5W的隔离电源。采用不同的变压器，外围只需搭配简单的输入输出滤波电容和整流电路，即可获得多种隔离电压输出。产品提供电阻选频功能，可以在200-420kHz范围内连续调整开关频率。

线易微：CMP6713HV隔离电源驱动芯片

　　02 产品特点

　　精简和紧凑的SOT23-6封装

　　使能引脚支持高压(可直接连接VIN)

　　抑制功率变压器的偏磁或饱和

　　长期短路保护和自恢复功能

　　集成限流/欠压/热关断保护

　　软启动特性

　　03 典型方案

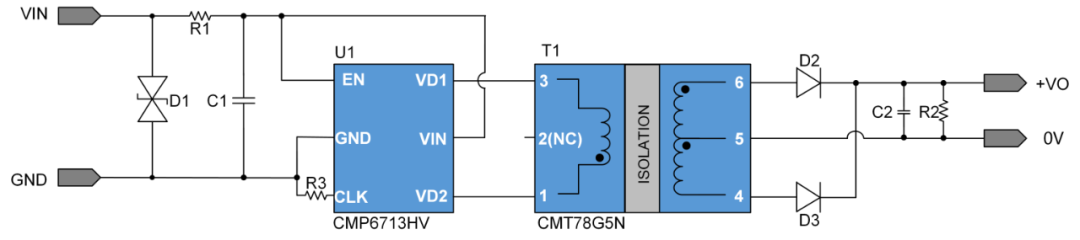

　　CMP6713HV搭配不同的变压器，可实现多种输入输出电压组合的解决方案，典型应用方案如图所示。

线易微：CMP6713HV隔离电源驱动芯片

典型方案与变压器配套

线易微：CMP6713HV隔离电源驱动芯片
