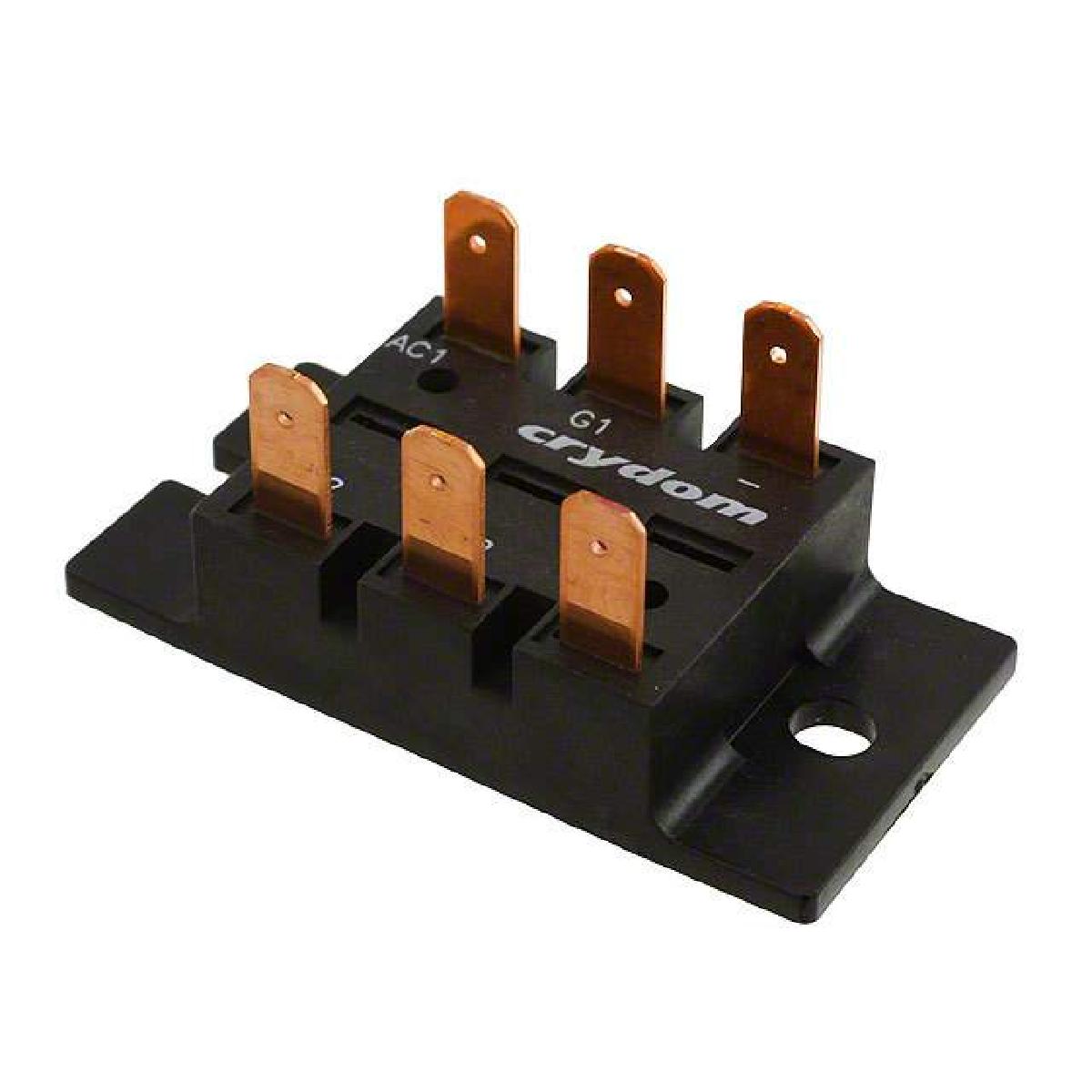

| B511F-2 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
MOD DIODE SCR 25A 120VAC ISO QC
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Module with Isolation Barriers |
|---|---|
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A @ 60Hz |
| Packaging | Bulk |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - On State (It (RMS)) (Max) | 25A (DC) |
| Mounting Type | Chassis Mount |
| Voltage - Off State | 400V |
| Standard Package | 10 |
| Current - Gate Trigger (Igt) (Max) | 60mA |
| Other Related Documents | SCR Module Selection Guide Declaration of Conformity |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Family | SCRs - Modules |
| 3D Model | B-2 Series, Circuit 1,2,3, &5.sat B-2 Series, Circuit 1,2,3 & 5.dwg B-2 Series, Circuit 1,2,3, &5.stp |
