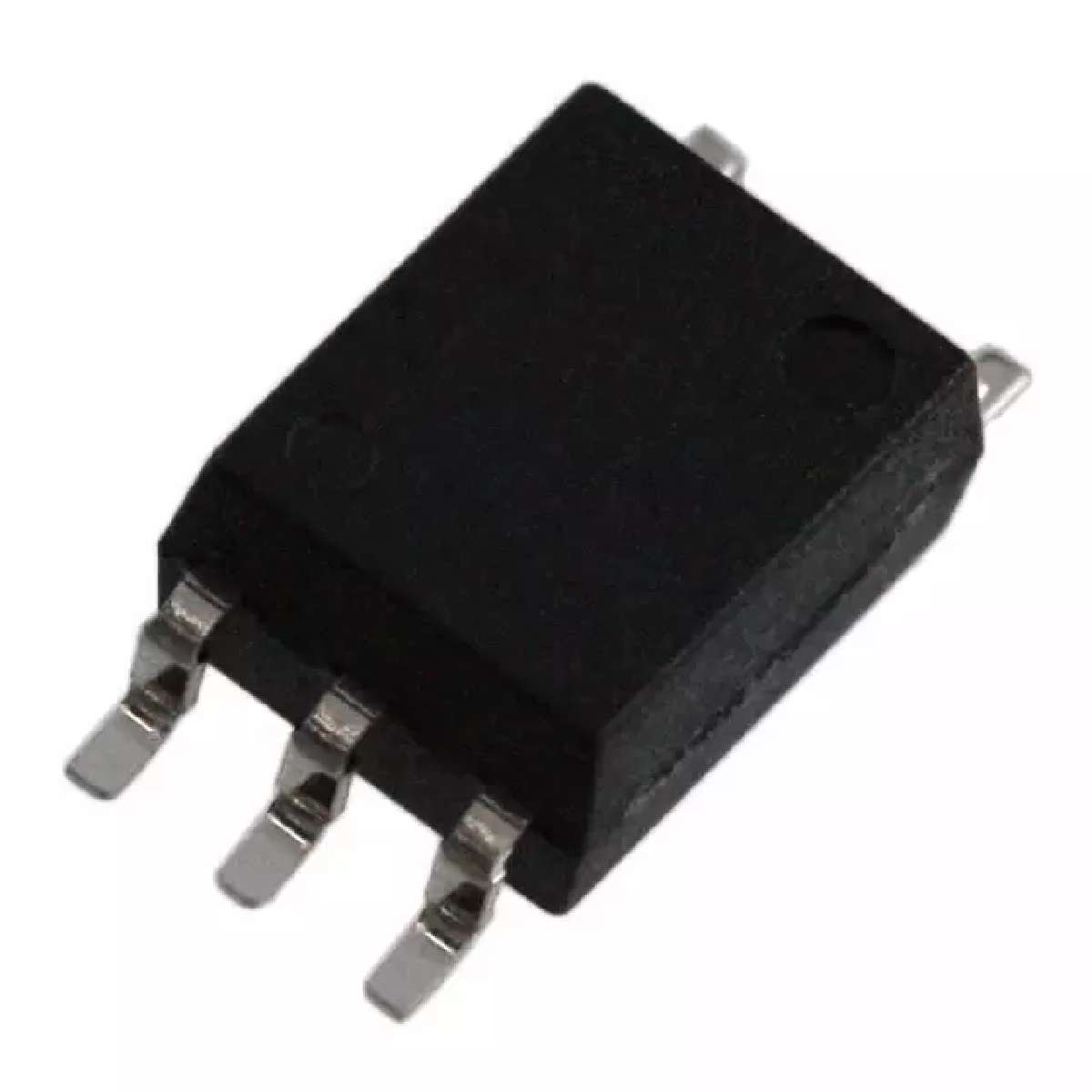

| TLP2309(TPL,E) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
OPTOISO 3.75KV TRANS 6-SO 5 LEAD
|
||
| 标准包装：3000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 3750Vrms |
|---|---|
| Turn On / Turn Off Time (Typ) | 1µs, 1µs |
| Current - DC Forward (If) (Max) | 25mA |
| Input Type | DC |
| Current - Output / Channel | 8mA |
| Standard Package | 1 |
| Number of Channels | 1 |
| Online Catalog | TLP2309 Series |
| Operating Temperature | -40°C ~ 110°C |
| Current Transfer Ratio (Min) | 15% @ 16mA |
| Voltage - Output (Max) | 20V |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.179", 4.55mm Width) 5 Leads |
| Supplier Device Package | 6-SO, 5 Lead |
| Packaging | Cut Tape (CT) |
| Output Type | Transistor |
| Family | Optoisolators - Transistor, Photovoltaic Output |
