| MMF003366 | ||
|---|---|---|
|
|
||
|
||

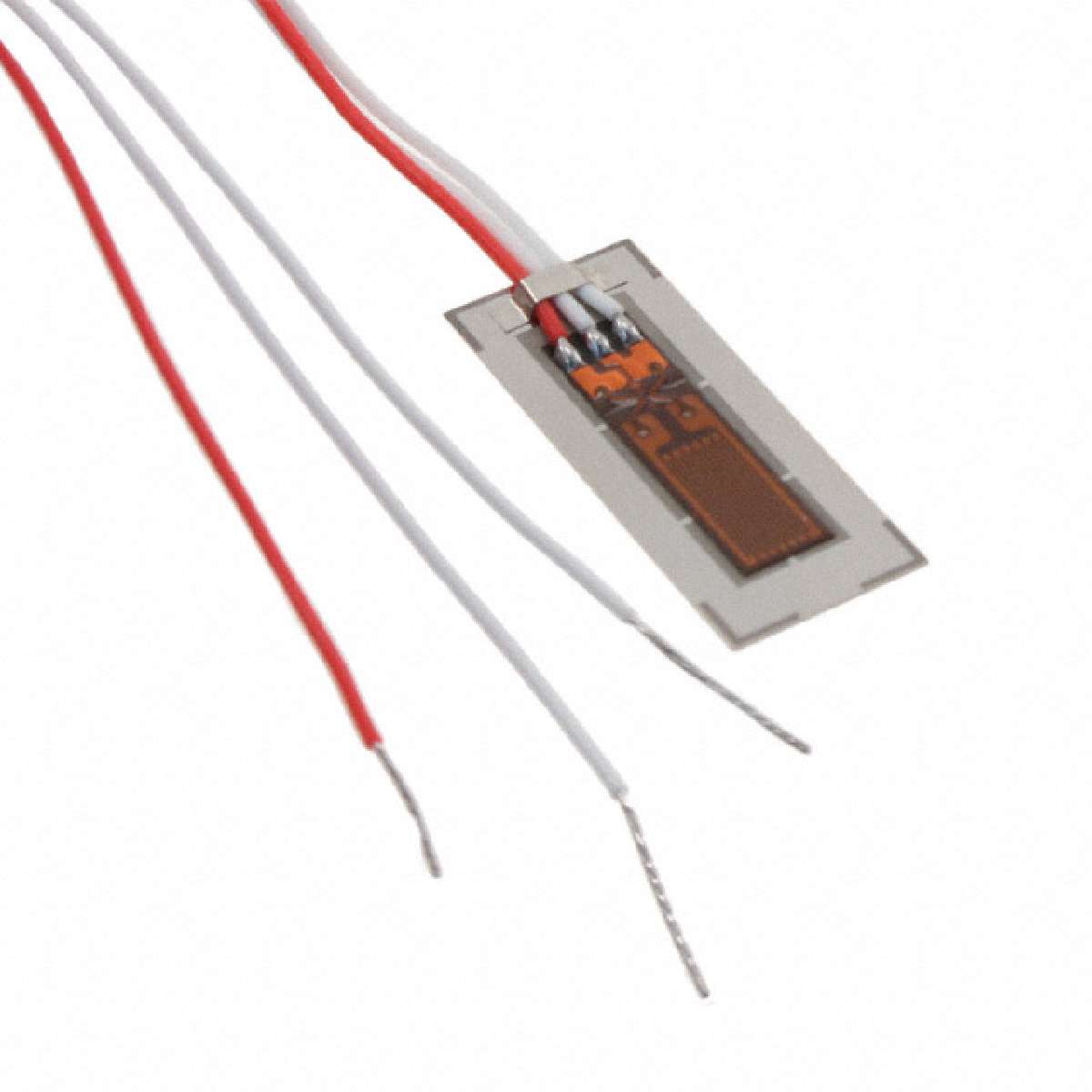

| Product description : STRAIN GAUGE 350 OHM LINEAR WELD | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Width - Overall Pattern | 0.170" (4.30mm) |
|---|---|
| Length - Overall Pattern | 0.620" (15.70mm) |
| Part Status | Active |
| Manufacturer | Micro-Measurements (Division of Vishay Precision Group) |
| Length - Overall | 0.88" (22.4mm) |
| Width - Active | 0.125" (3.18mm) |
| Family | Strain Gauges |
| Length - Active | 0.250" (6.35mm) |
| Width - Overall | 0.32" (8.1mm) |
| Strain Range | ±5000µin/in (±5000µm/m) |
| Category | Sensors, Transducers |
| Resistance Tolerance | ±0.4% |
| Resistance (Ohms) | 350 |
| Series | LWK |
| Pattern Type | Linear Weldable |
| Operating Temperature | -320 ~ 500°F (-195 ~ 260°C) |
