| STEVAL-ISA057V1 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

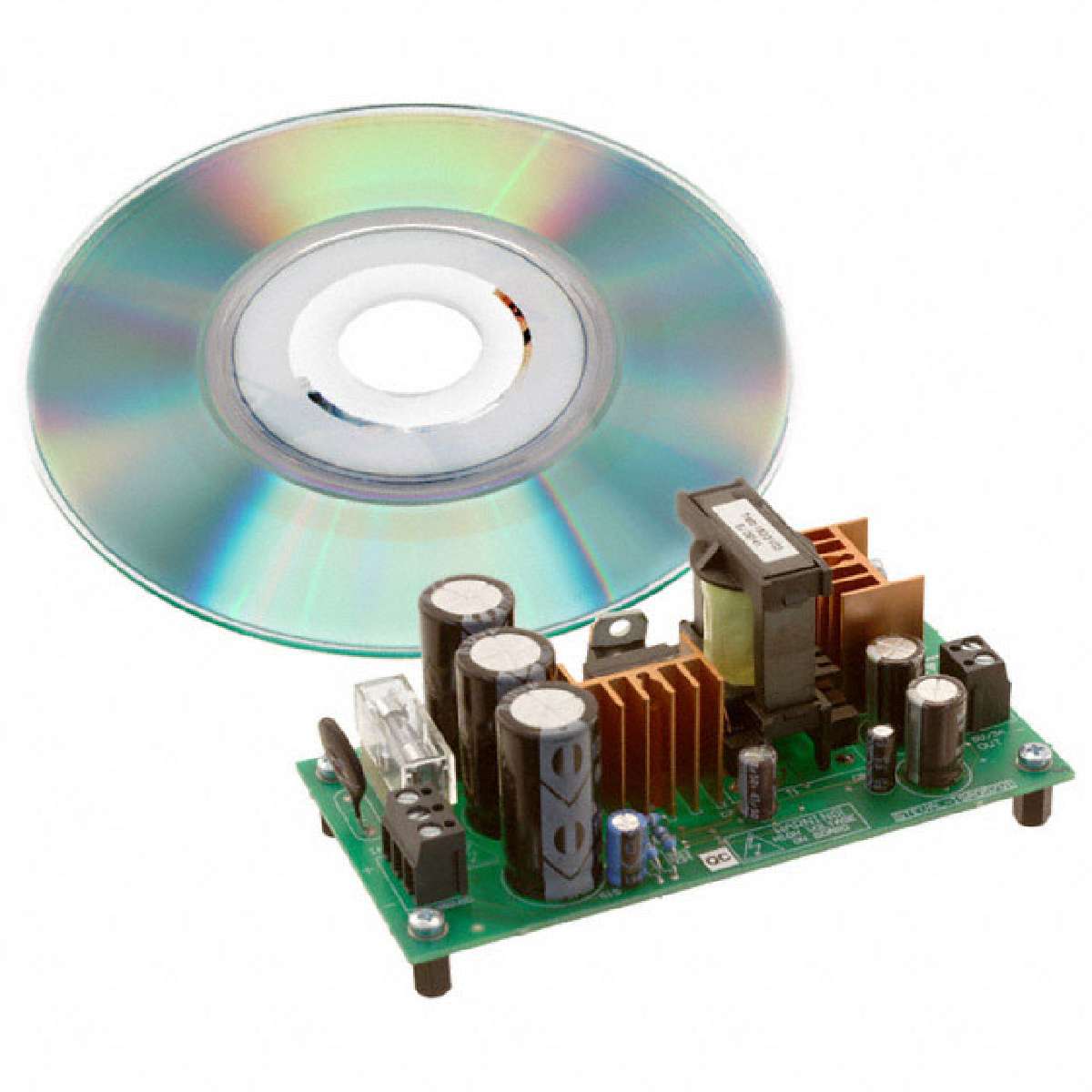

BOARD DEMO STC03DE220HV/ L6565
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Board Type | Fully Populated |
|---|---|
| Voltage - Input | 125 V ~ 1250 V |
| Voltage - Output | 5V |
| Product Training Modules | DC to DC Conversion Cookbook |
| Utilized IC / Part | L6565, STC03DE220HV |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Frequency - Switching | 30kHz |
| RoHS | Lead free / RoHS Compliant |
| Regulator Topology | Buck |
| Current - Output | 3A |
| Supplied Contents | Board |
| Other Related Documents | STEVAL-ISA057V1 View All Specifications STEVAL-ISA057V1 View All Specifications |
| Design Resources | STEVAL-ISA057V1 Bill of Materials STEVAL-ISA057V1 Gerber Files STEVAL-ISA057V1 Schematic |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
