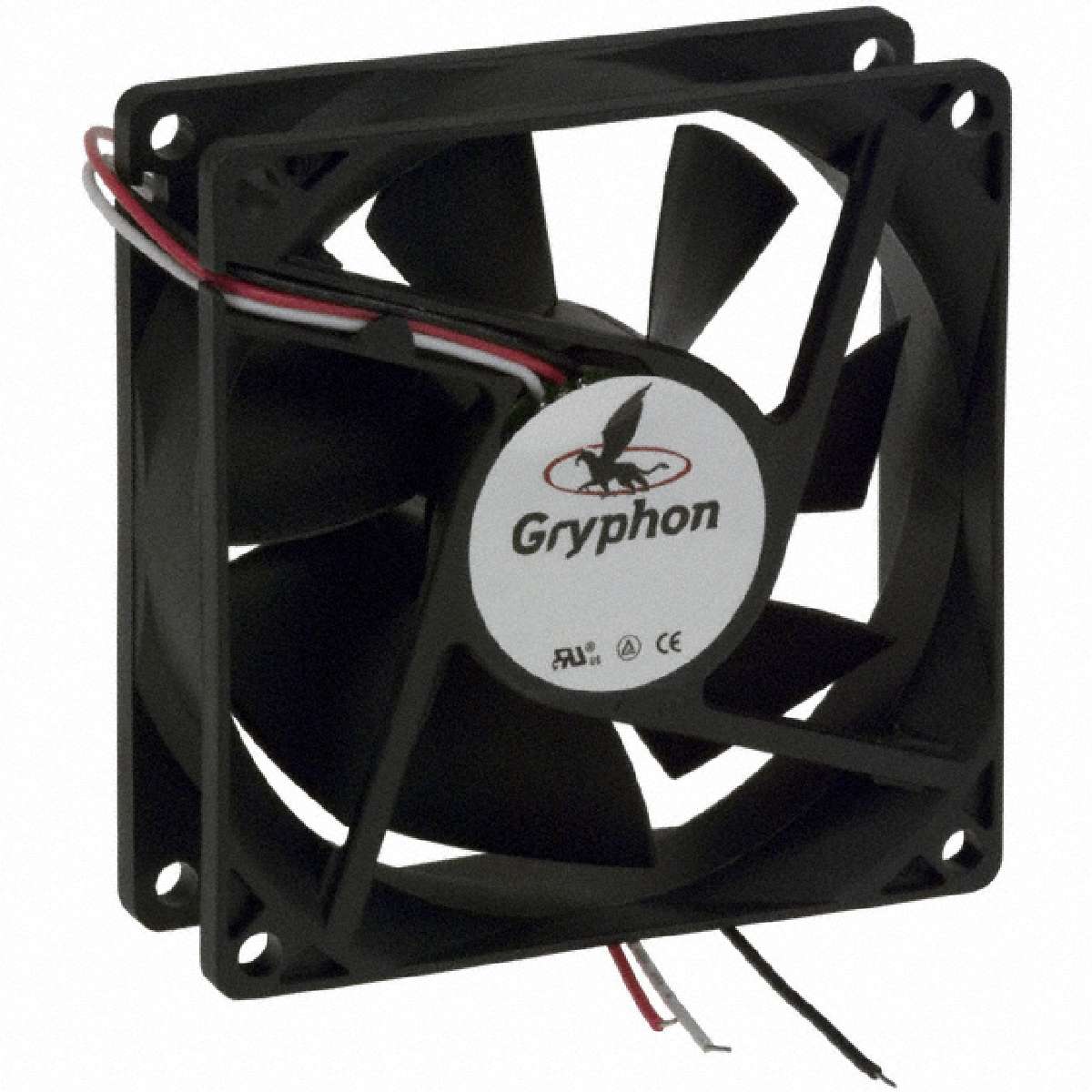

| GDA8025-12BB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
FAN AXIAL 80X25MM 12VDC WIRE
|
||
| 标准包装：40 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 3 Wire Leads |
|---|---|
| Features | Speed Sensor (Tach) |
| Size / Dimension | Square - 80mm L x 80mm H |
| Category | Fans, Thermal Management |
| Air Flow | 35.0 CFM (0.991m³/min) |
| Voltage - Rated | 12VDC |
| Noise | 30.8 dB(A) |
| Family | DC Fans |
| Width | 25mm |
| Fan Type | Tubeaxial |
| Static Pressure | 0.130 in H2O (32.4 Pa) |
| Voltage Range | 6 ~ 13.8VDC |
| Part Status | Obsolete |
| Manufacturer | Comair Rotron |
| Weight | 0.167 lb (75.75g) |
| Series | Gryphon |
| Power (Watts) | 2.00W |
| RPM | 3000 RPM |
| Bearing Type | Ball |
| Current Rating | 0.170A |
