| 1011300000 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

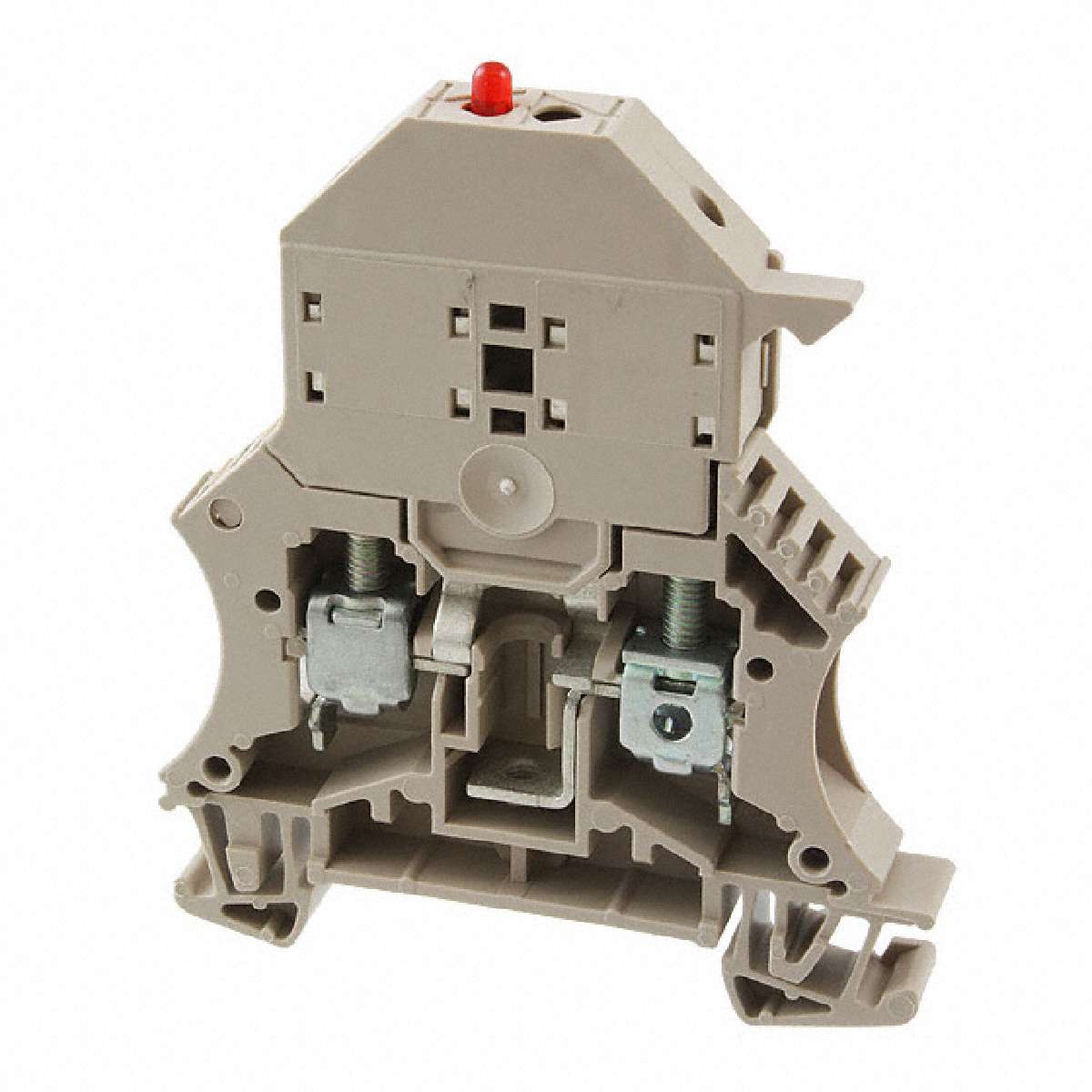

CONN TERM BLK 1 X 1/4 FUSE LED
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Type | Disconnect |
|---|---|
| Wire Gauge or Range - mm² | 0.5-10mm² |
| Number of Levels | 1 |
| Color | Beige |
| Features | LED |
| Fuse Type | 1" x 1/4" |
| Manufacturer | Weidmuller |
| Terminal - Width | 7.9mm |
| Number of Positions | 2 |
| Voltage - IEC | 500V |
| Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic, Wemid |
| Termination Style | Screw |
| Stripping Length | 12mm |
| Current - IEC | 6.3A |
| Part Status | Active |
| Category | Connectors, Interconnects |
| Disconnect Type | Fuse, Removable Plug |
| Series | W |
| Family | Terminal Blocks - Din Rail, Channel |
| Wire Gauge or Range - AWG | 8-20 AWG |
