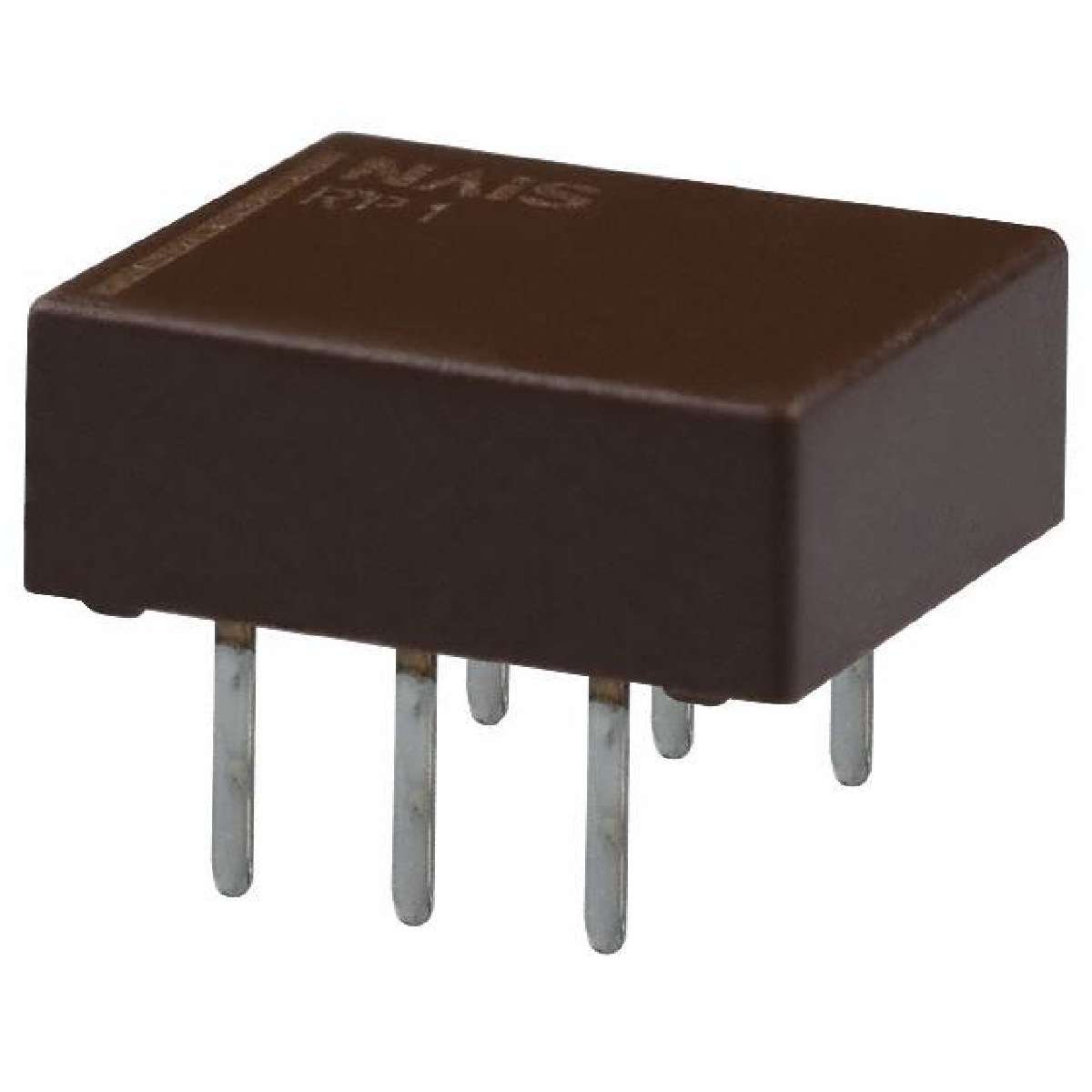

| RP1-1.5V | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
RELAY RF SPDT 100MA 1.5V
|
||
| 标准包装：50 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Contact Form | SPDT (1 Form C) |
|---|---|
| Coil Power | 140 mW |
| Turn On Voltage (Max) | 1.13 VDC |
| Other Related Documents | Standards Chart How to Read Date Codes |
| Coil Resistance | 16 Ohms |
| Mounting Type | Through Hole |
| Turn Off Voltage (Min) | 0.15 VDC |
| Operate Time | 3ms |
| Coil Current | 93.8mA |
| Contact Material | Silver (Ag), Gold (Au) |
| Series | RP |
| Operating Temperature | -40°C ~ 70°C |
| PCN Obsolescence/ EOL | RP Relays Mar/2012 |
| Termination Style | PC Pin |
| Coil Type | Non Latching |
| Switching Voltage | 30VDC - Nom |
| Coil Voltage | 1.5VDC |
| Contact Rating (Current) | 100mA |
| Standard Package | 50 |
| Packaging | Tube |
| Release Time | 2ms |
| Relay Type | RF |
| Family | Signal Relays, Up to 2 Amps |
