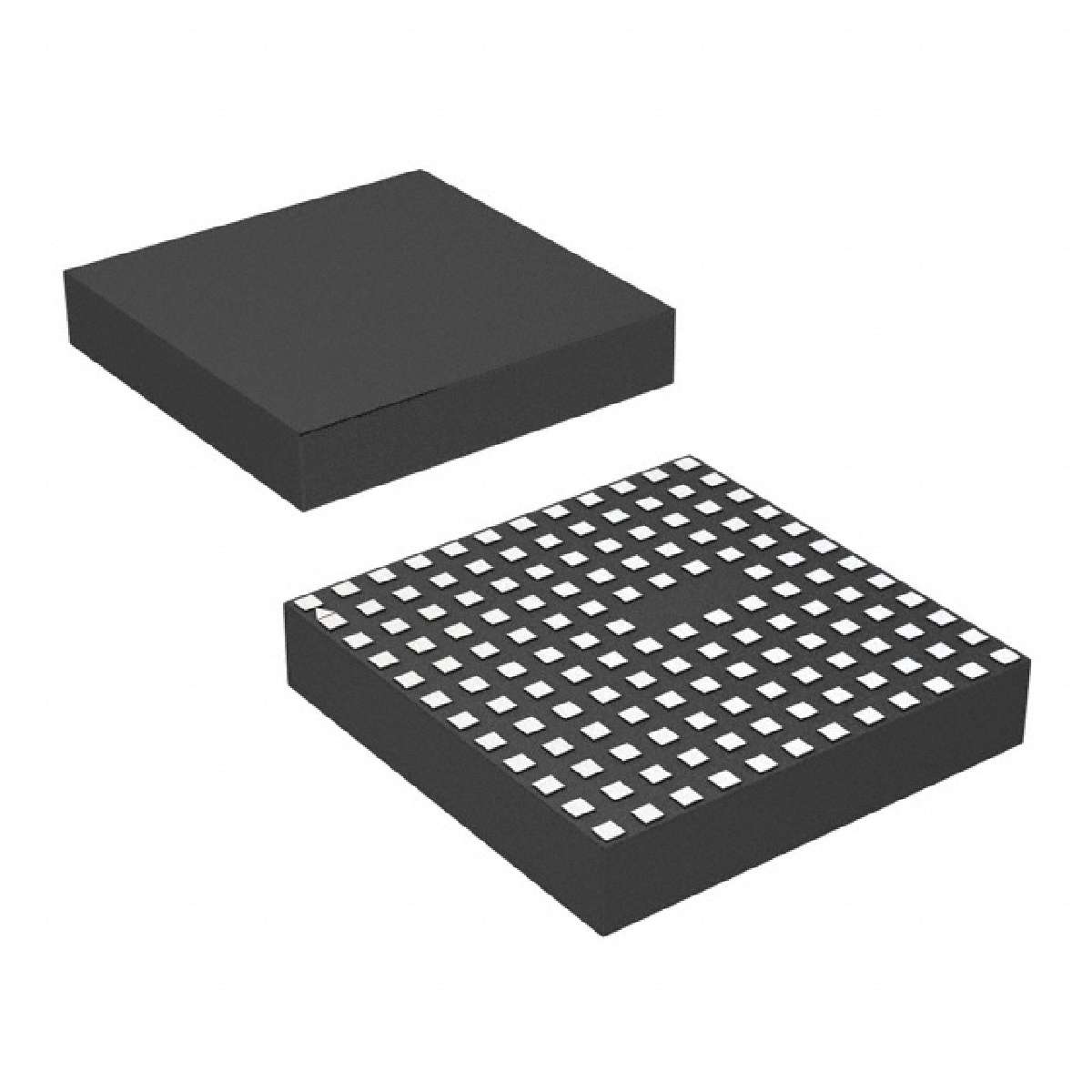

| LTM4609IV#PBF | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
LTM4609IV#PBF , 降压/升压稳压器, 4A, 可调输出, 0.8 → 34 V, 330 kHz, 141针 LGA封装
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Outputs | 1 |
|---|---|
| Current - Output (Max) | 10A |
| Product Training Modules | Buck-Boost uModule Regulators High Voltage µModule DC/DC Regulators Power Module vs. Discrete DC to DC |
| Design Resources | LTM4609 Spice Model DC1477A Design Files LTM4609IV#PBF Footprint.bxl |
| Packaging | Tube |
| For Use With | DC1477A-ND - BOARD EVAL LTM4609 DC1477B-ND - BOARD EVAL LTM4609 |
| Features | OCP, OVP, UVLO |
| Online Catalog | µModule® Series LTM4609 |
| Series | LTM®, uModule® |
| Voltage - Input (Min) | 4.5V |
| RoHS | Lead free / RoHS Compliant |
| Type | Non-Isolated PoL Module |
| Size / Dimension | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) |
| Efficiency | 98% |
| Mounting Type | Surface Mount |
| Package / Case | 141-LGA |
| Reference Design Library | DC1477A: 30V @3A (10Vin) @8A (24Vin) @10A (>30Vin) DC1477B: 30V @3A (10Vin) @8A (24Vin) @10A (>30Vin) |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 0.8 ~ 34 V |
| Family | DC DC Converters |
| Operating Temperature | -40°C ~ 85°C |
