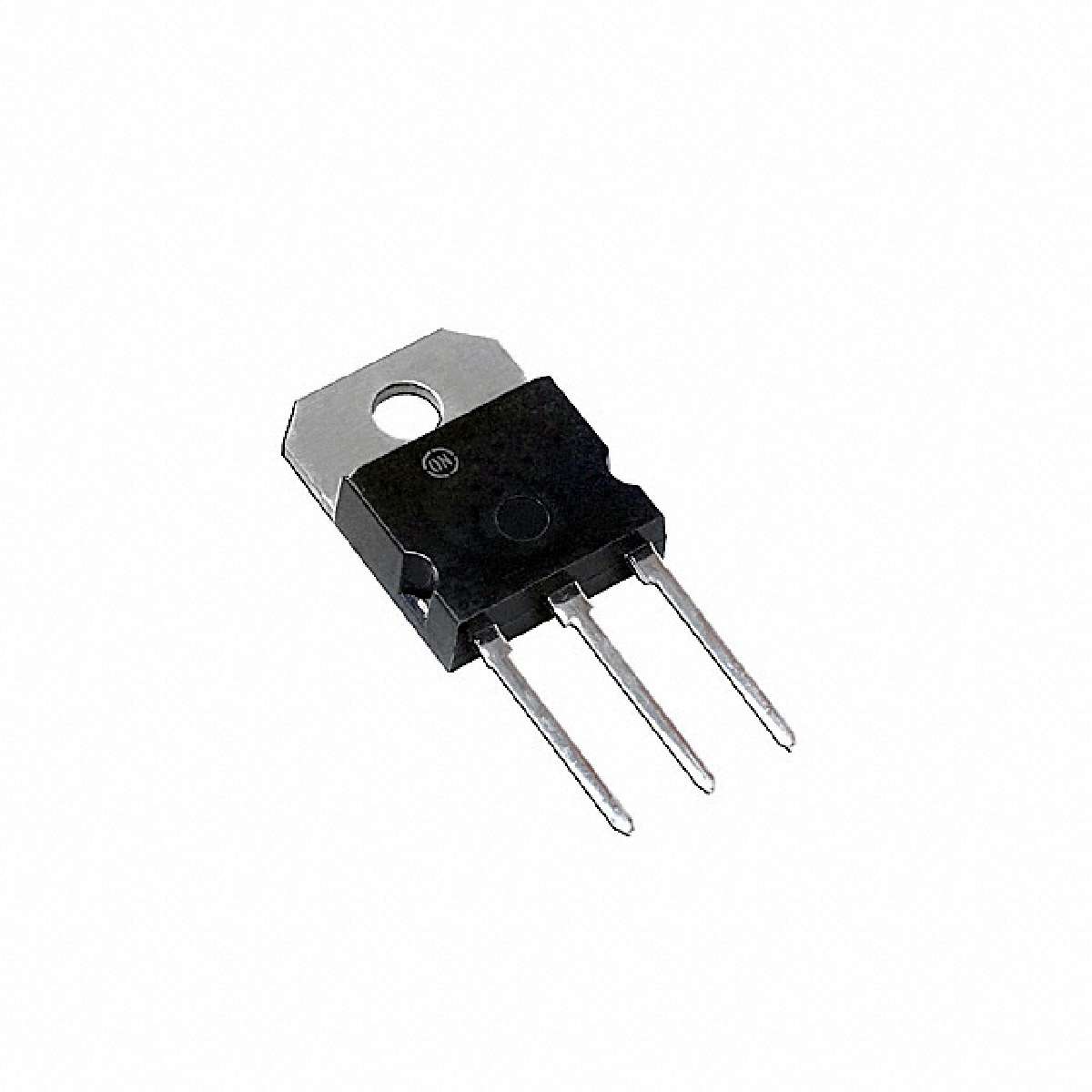

| MUR3040PT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
DIODE ARRAY GP 400V 15A SOT93
|
||
| 标准包装：30 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | TO-218-3 |
|---|---|
| Supplier Device Package | SOT-93 |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Diode Type | Standard |
| Reverse Recovery Time (trr) | 60ns |
| Series | SWITCHMODE™ |
| Mounting Type | Through Hole |
| Diode Configuration | 1 Pair Common Cathode |
| PCN Obsolescence/ EOL | Multiple Devices 19/Jun/2009 |
| Standard Package | 30 |
| Packaging | Tube |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 10µA @ 400V |
| Family | Diodes, Rectifiers - Arrays |
| Voltage - DC Reverse (Vr) (Max) | 400V |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 15A |
