| G2R-1A-E-ASI-DC12 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

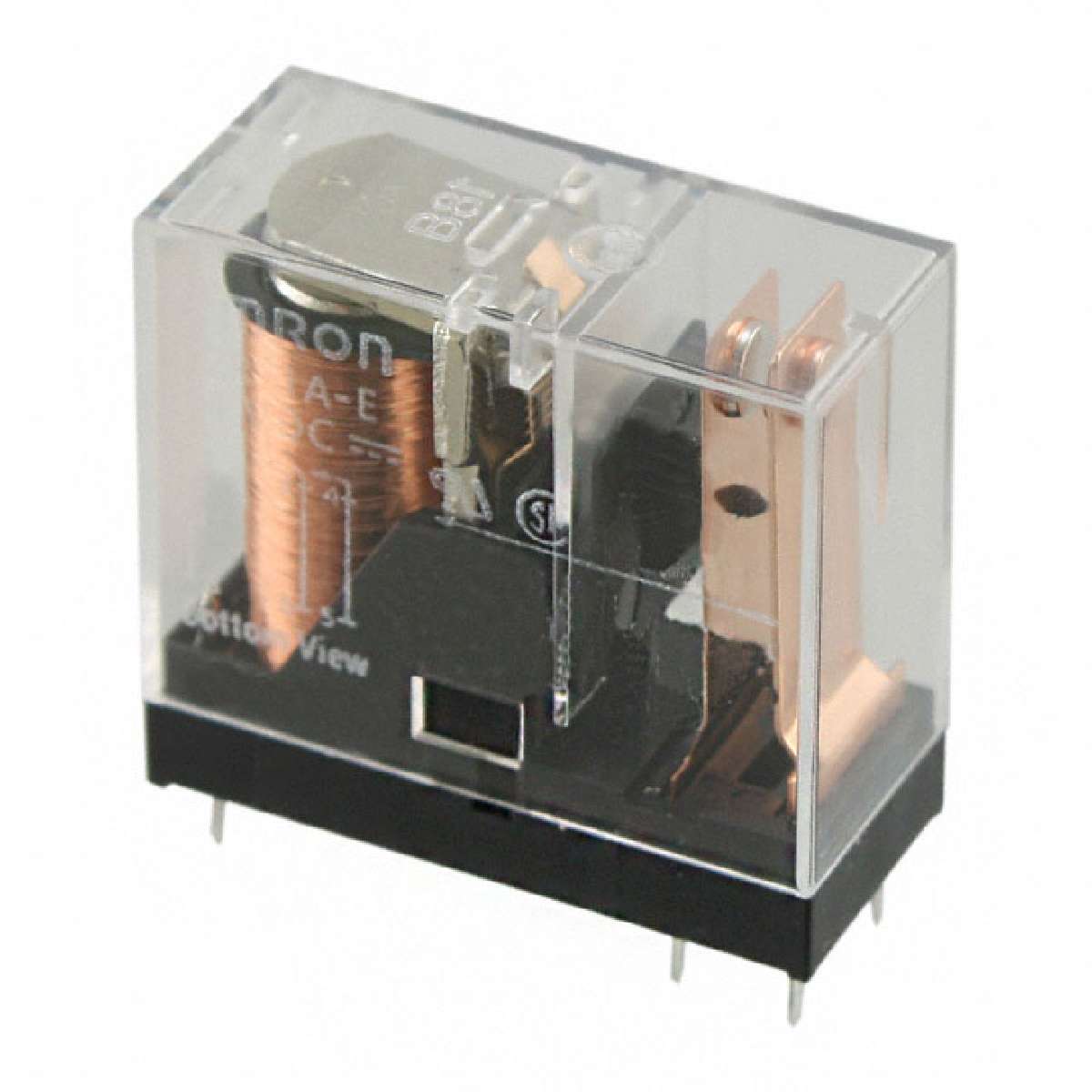

RELAY GEN PURPOSE SPST 16A 12V
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Contact Form | SPST-NO (1 Form A) |
|---|---|
| Termination Style | PC Pin |
| Coil Type | Non Latching |
| Switching Voltage | 380VAC, 125VDC - Max |
| Coil Voltage | 12VDC |
| Contact Rating (Current) | 16A |
| Standard Package | 100 |
| Features | Sealed - Flux Protection |
| Coil Current | 43.6mA |
| Contact Material | Silver Alloy |
| Series | G2R |
| Operating Temperature | -40°C ~ 70°C |
| Coil Power | 530 mW |
| Turn On Voltage (Max) | 8.4 VDC |
| Other Related Documents | How to Read Date Codes |
| Coil Resistance | 275 Ohms |
| Mounting Type | Through Hole |
| Turn Off Voltage (Min) | 1.8 VDC |
| Operate Time | 15ms |
| Packaging | Bulk |
| Release Time | 5ms |
| Relay Type | General Purpose |
| Family | Power Relays, Over 2 Amps |
