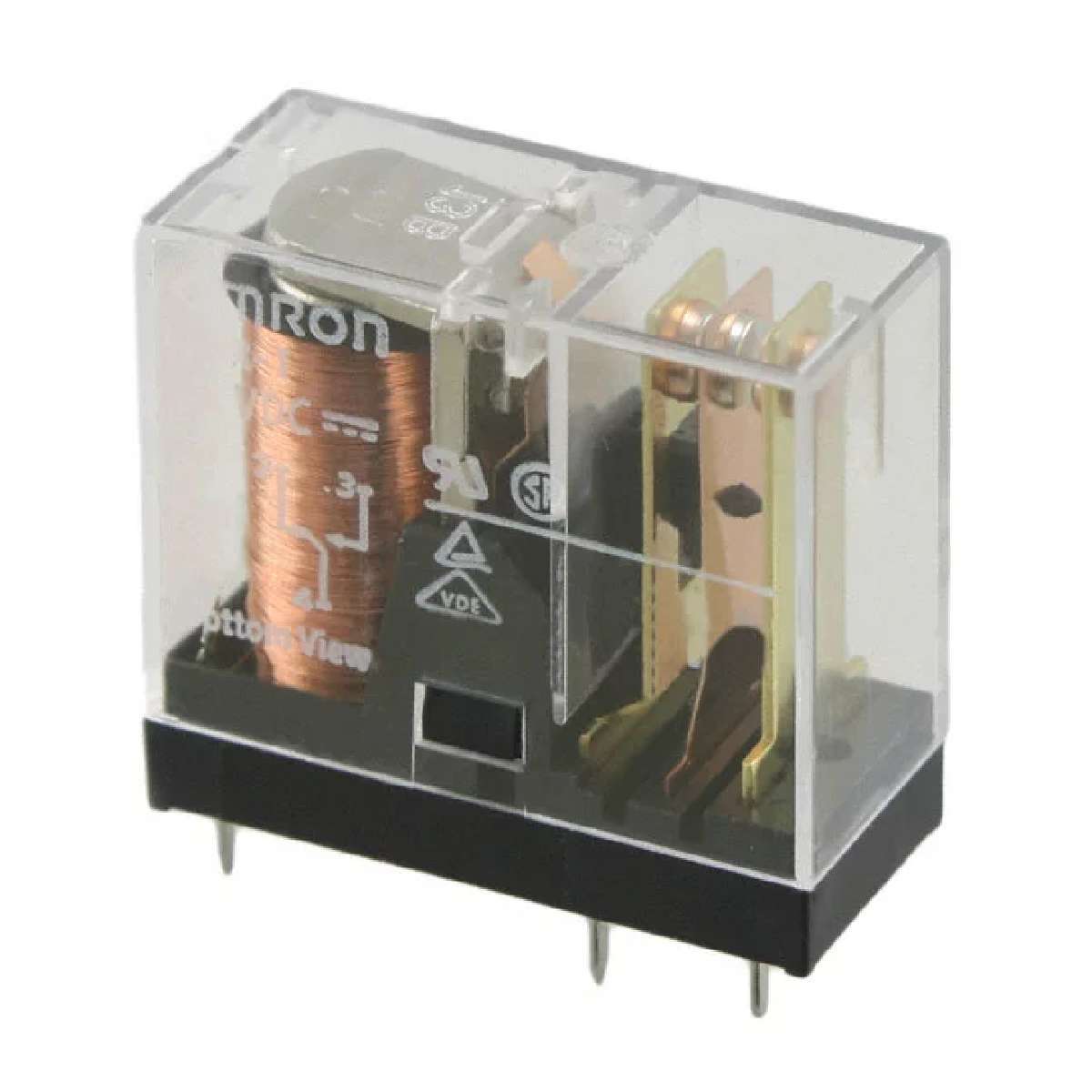

| G2R-1-E-T130 DC48 | ||
|---|---|---|
|
|
||
|
||
| Product description : RELAY GEN PURPOSE SPDT 16A 48V | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Contact Form | SPDT (1 Form C) |
|---|---|
| Turn Off Voltage (Min) | 7.2 VDC |
| Operate Time | 15ms |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Coil Current | 11.5mA |
| Switching Voltage | 380VAC, 125VDC - Max |
| Relay Type | General Purpose |
| Coil Resistance | 4.17 kOhms |
| Family | Power Relays, Over 2 Amps |
| Contact Rating (Current) | 16A |
| Coil Power | 530 mW |
| Termination Style | PC Pin |
| Turn On Voltage (Max) | 33.6 VDC |
| Features | Sealed - Flux Protection |
| Other Related Documents | How to Read Date Codes |
| Release Time | 5ms |
| Contact Material | Silver Alloy |
| Series | G2R |
| Coil Voltage | 48VDC |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 70°C |
