| 742792121 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

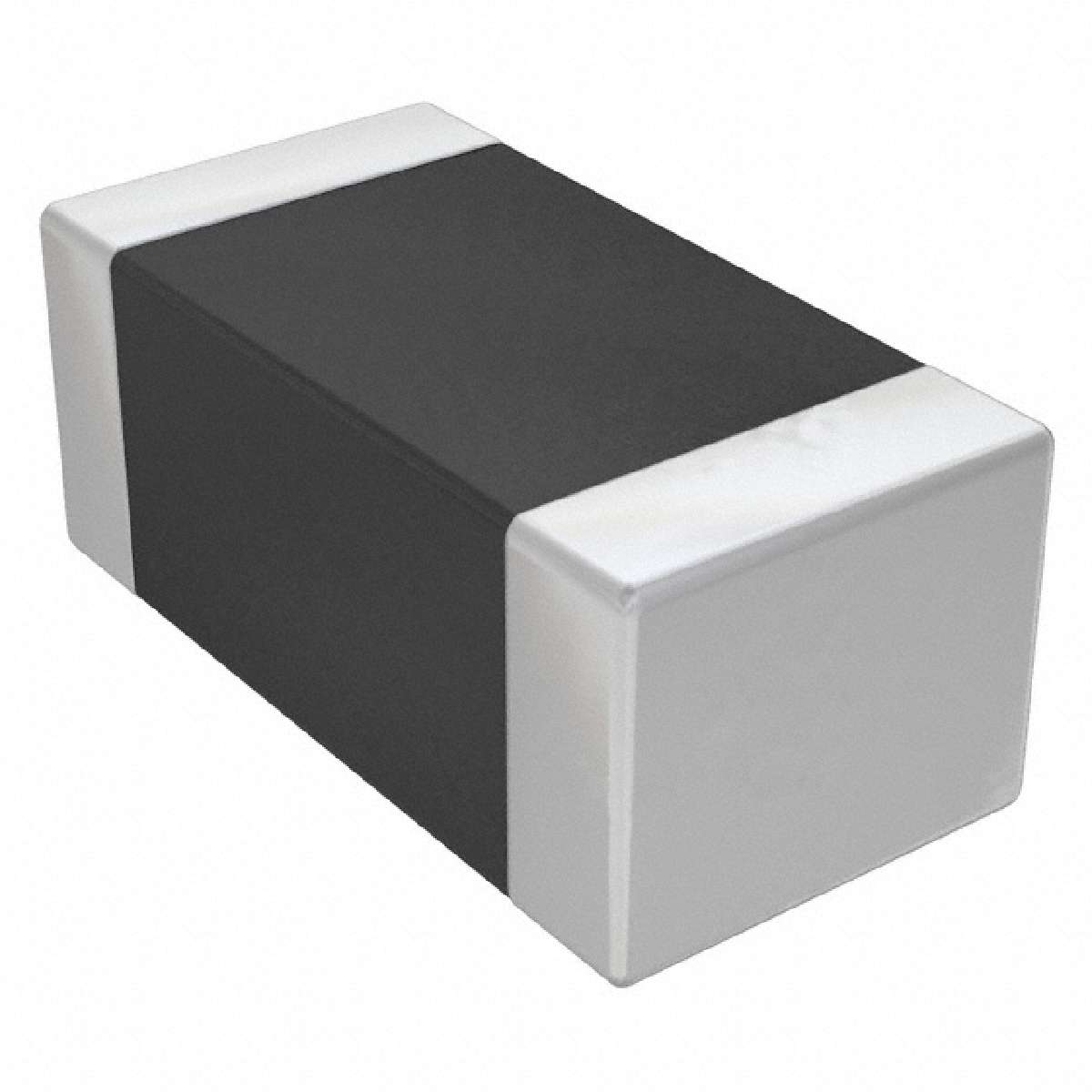

WE-CBF Ferrite Bead 1206 300Ohm 3000mA
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Current Rating (Max) | 3A |
|---|---|
| Number of Lines | 1 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| DC Resistance (DCR) (Max) | 60 mOhm |
| Manufacturer | Wurth Electronics Inc |
| Family | Ferrite Beads and Chips |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 1206 (3216 Metric) |
| Impedance @ Frequency | 300 Ohm @ 100MHz |
| Part Status | Active |
| Category | Filters |
| Series | WE-CBF |
| Height (Max) | 0.051" (1.30mm) |
| Filter Type | Signal Line |
| Packaging | Digi-Reel® |
| 数据手册： |
|---|
