| FAD1-06025CBKW12 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

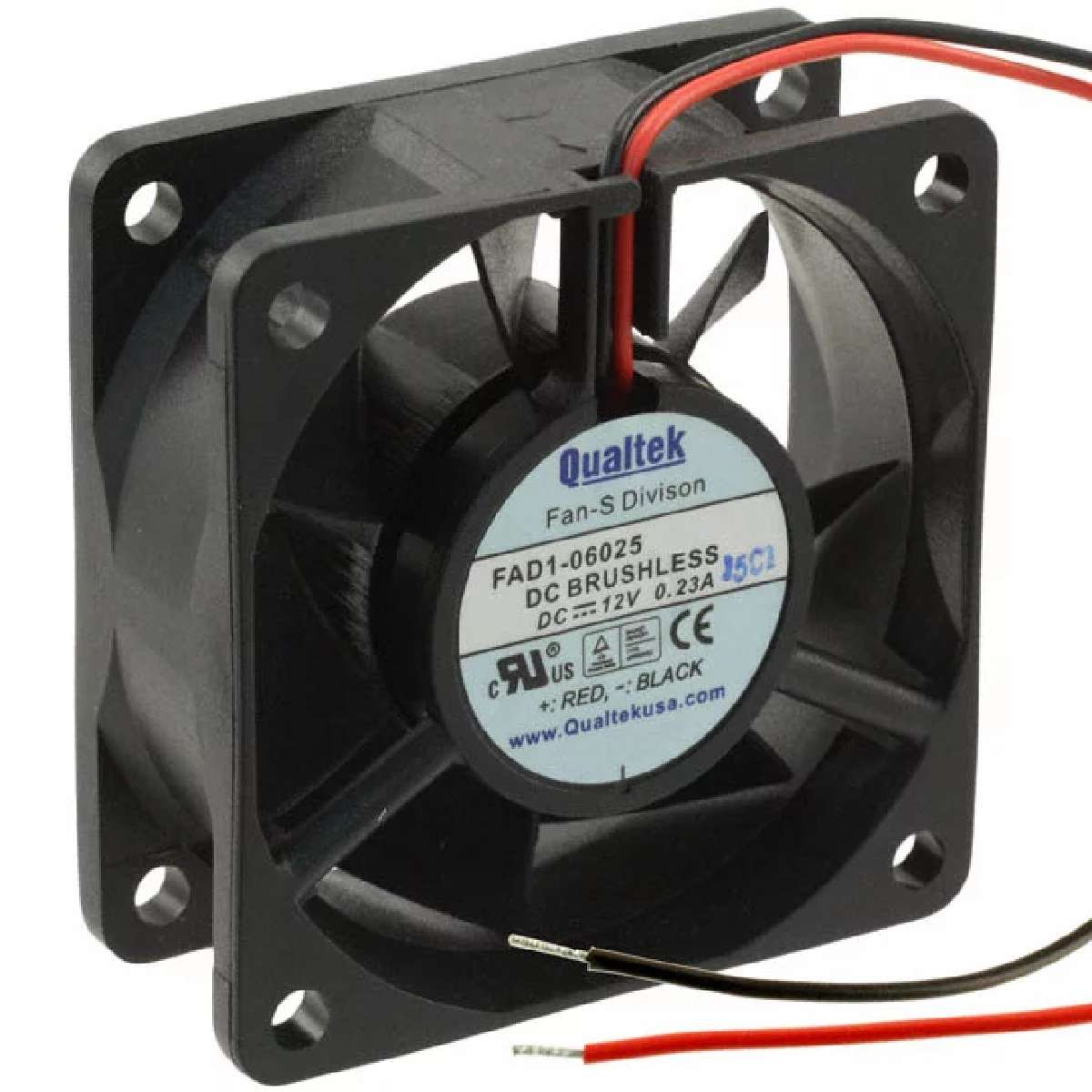

FAN AXIAL 60X25MM 12VDC WIRE
|
||
| 标准包装：300 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Plastic |
| Size / Dimension | Square - 60mm L x 60mm H x 25mm W |
| Air Flow | 31.4 CFM (0.889m³/min) |
| Voltage - Rated | 12VDC |
| Noise | 42.9 dB(A) |
| Family | DC Fans |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| Static Pressure | 0.320 in H2O (79.7 Pa) |
| Standard Package | 300 |
| Material - Frame | Plastic |
| Weight | 0.117 lb (53.07g) |
| Series | FAD1-06025 |
| Power (Watts) | 3.60W |
| RPM | 6100 RPM |
| Bearing Type | Ball |
| Current Rating | 0.300A |
