| A22RW-2MG-24A-10 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

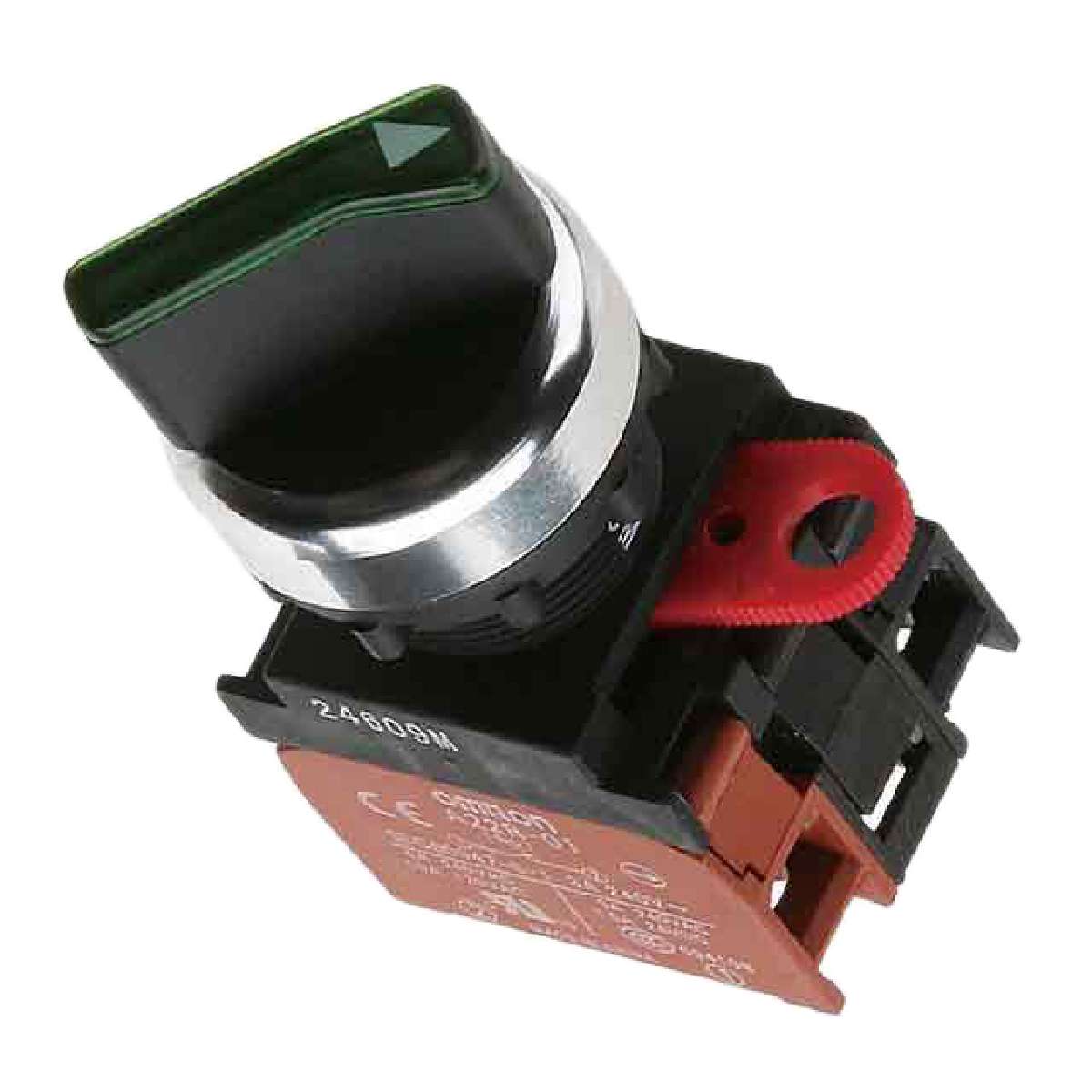

Omron 2位置 旋转开关, 240 V 交流, 10 A, 旋钮执行器
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Depth Behind Flange | 46.80mm |
|---|---|
| Circuit | SPST-NO |
| Type | Standard |
| Voltage Rating - AC | 120V |
| Approvals | CCC, cULus |
| Part Status | Obsolete |
| Electrical Life | 500,000 Cycles |
| Category | Switches |
| Series | A22RW |
| Mechanical Life | 300,000 Cycles |
| Panel Cutout Dimensions | Circular - 22.30mm Dia |
| Operating Temperature | -20°C ~ 50°C |
| Illumination Voltage (Nominal) | 24 VAC/DC |
| Switch Function | Off-On |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Termination Style | Screw Terminal |
| Features | Bezel - Round |
| Illumination Type, Color | LED, Green |
| Manufacturer | Omron Automation and Safety |
| Illumination | Illuminated |
| Number of Positions | 2 |
| Family | Selector Switches |
| Mounting Type | Panel Mount |
| Current Rating | 10A (AC) |
