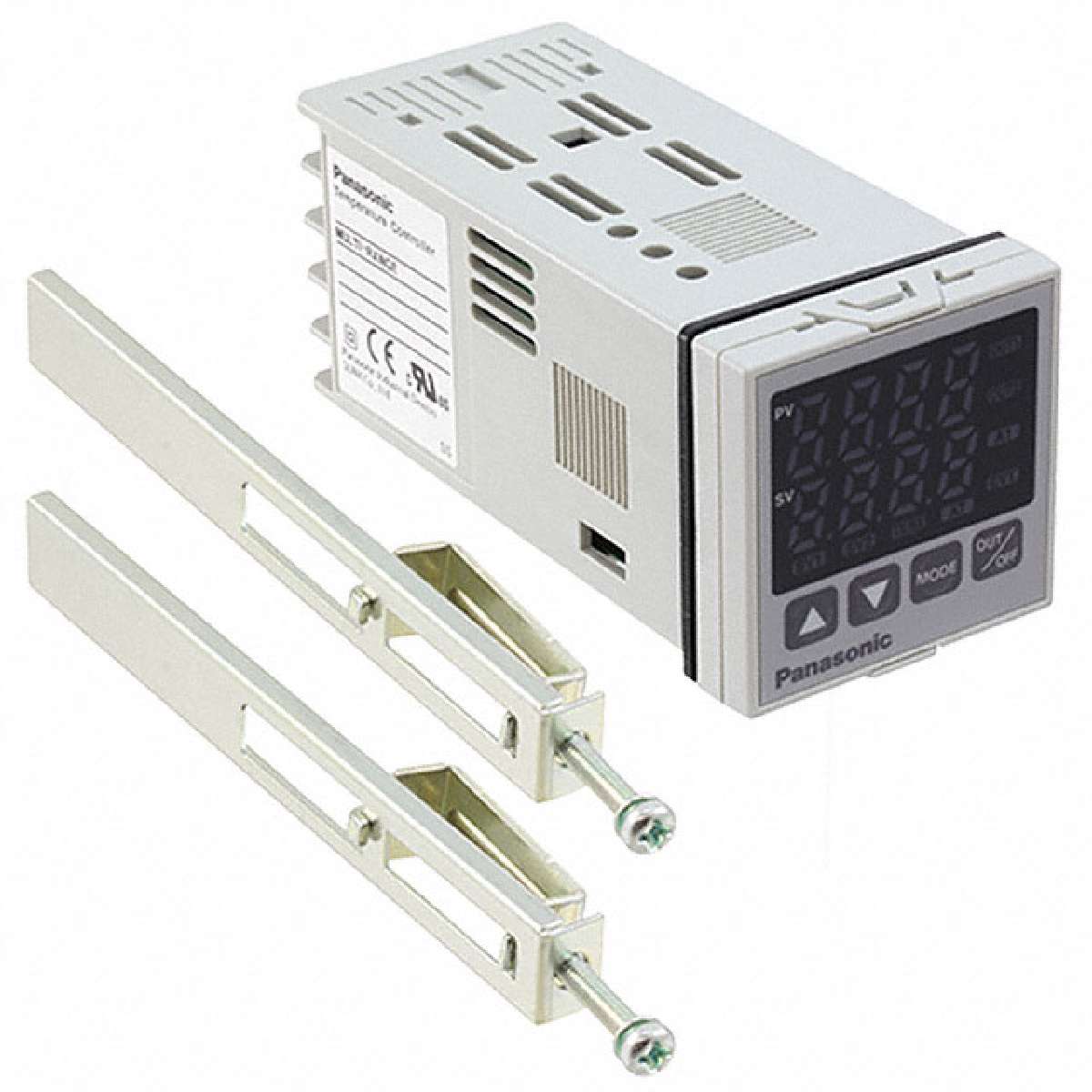

| AKT42112041 | ||
|---|---|---|
|
|
||
|
||
| Product description : CONTROL TEMP/PROC RELAY OUT 24V | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Supply | 24VAC/DC |
|---|---|
| Type | Process, Temperature Controller (RTD, Type B, C, E, J, K, N, PLII, R, S, T) |
| Ingress Protection | IP66 (Face) |
| Termination Style | Screw Terminal |
| Communications | RS-485 (Modbus) |
| Weight | 0.287 lb (130.18g) |
| Control Method | On/Off, Proportional (PID) |
| Family | Controllers - Process, Temperature |
| Mounting Type | Panel Mount |
| Input Range | -200°C ~ 2315°C, 0 ~ 20mA, 0 ~ 10VDC |
| Display Characters - Height | 0.401" (10.20mm), 0.347" (8.80mm) |
| Number Of Characters Per Row | 4, 4 |
| Standard Package | 1 |
| Features | Heater Fault Detection |
| Display Type | LED - Dual Color Characters |
| Output Type | Relay (3) |
| Series | KT4 |
| Panel Cutout Dimensions | Square - 45.00mm x 45.00mm |
| Operating Temperature | 0°C ~ 50°C |
