| 5KP26CA-G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

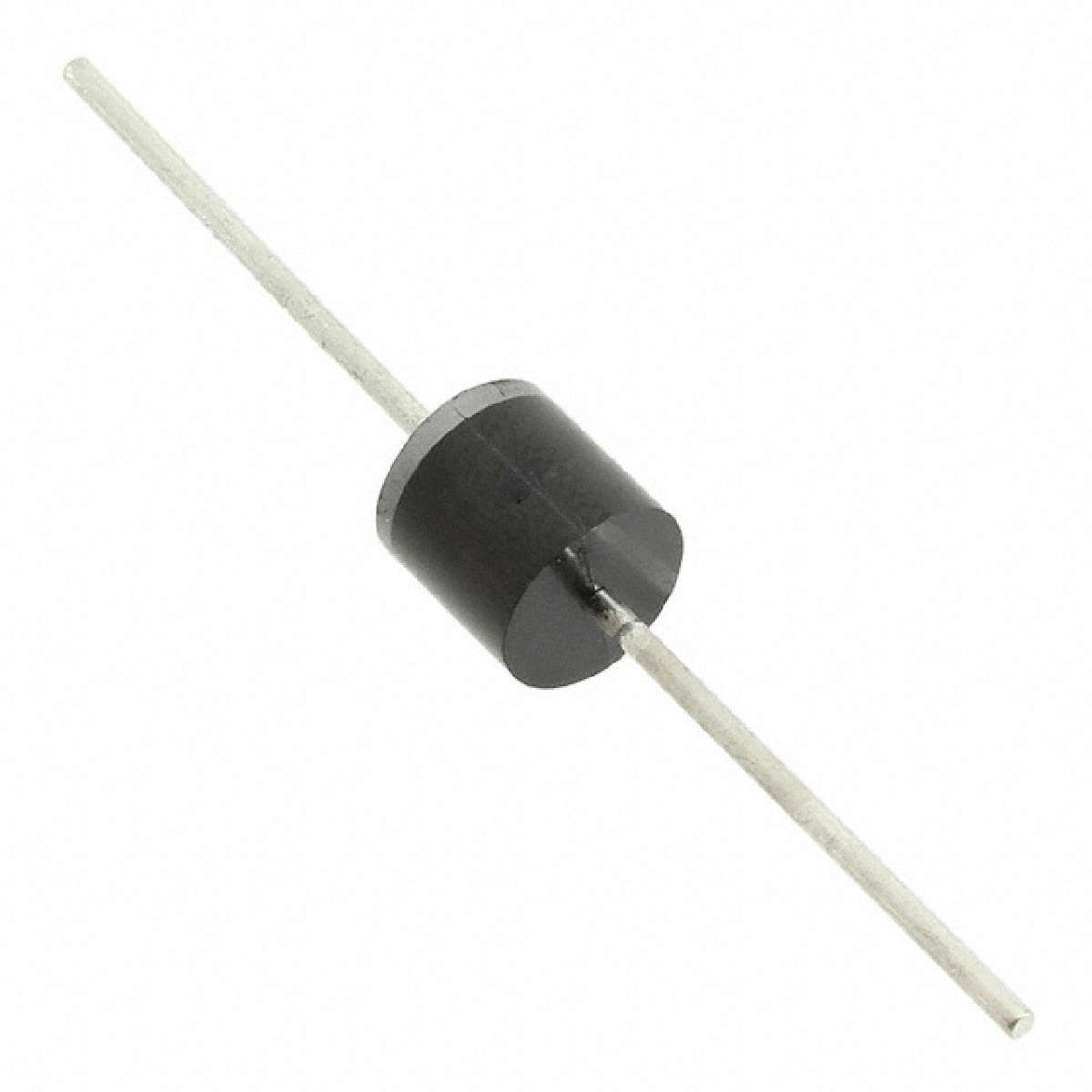

TVS DIODE 26VWM 42.1VC R6
|
||
| 标准包装：250 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Power - Peak Pulse | 5000W (5kW) |
|---|---|
| Type | Zener |
| Standard Package | 250 |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 28.9V |
| Applications | General Purpose |
| Voltage - Reverse Standoff (Typ) | 26V |
| Package / Case | R6, Axial |
| Supplier Device Package | R-6 |
| Power Line Protection | No |
| Packaging | Tape & Box (TB) |
| Current - Peak Pulse (10/1000µs) | 118.76A |
| Family | TVS - Diodes |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
