| 2-1393209-6 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

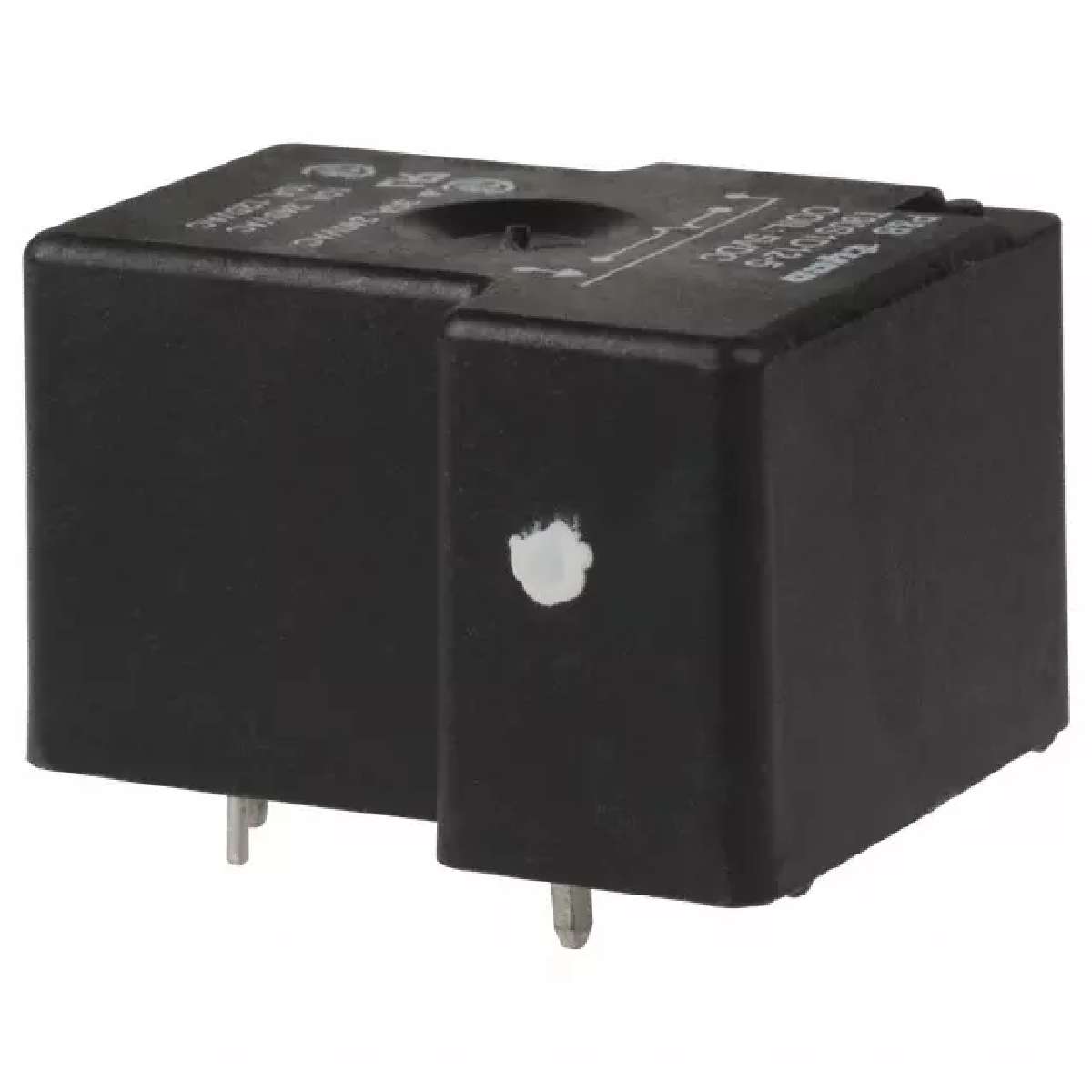

RELAY GEN PURPOSE SPST 30A 48V
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Contact Form | SPST-NO (1 Form A) |
|---|---|
| Turn Off Voltage (Min) | 4.8 VDC |
| Termination Style | PC Pin |
| Turn On Voltage (Max) | 36 VDC |
| Features | Insulation - Class F, Sealed - Fully |
| Coil Current | 19mA |
| Switching Voltage | 240VAC, 28VDC - Max |
| Relay Type | General Purpose |
| Coil Resistance | 2.56 kOhms |
| Family | Power Relays, Over 2 Amps |
| Contact Rating (Current) | 30A |
| Coil Power | 900 mW |
| Standard Package | 500 |
| Operate Time | 15ms |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Release Time | 15ms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Series | T90, Potter & Brumfield |
| Coil Voltage | 48VDC |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 85°C |
