| MFU0805FF02000P100 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

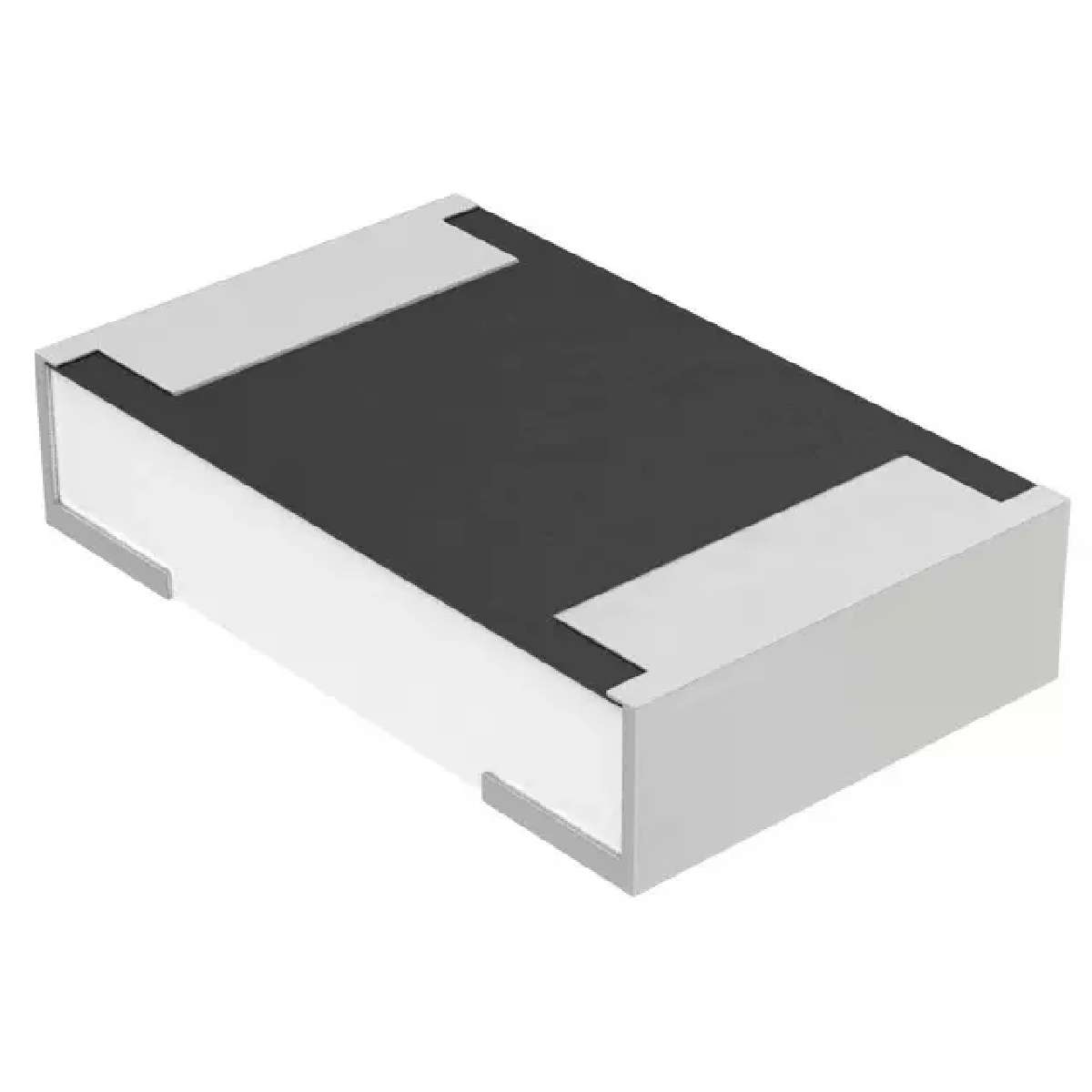

MFU Series 0805 (2012) Fast Acting 2 A 32 VDC Surface Mount Thin Film Chip Fuse
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Approvals | UL |
|---|---|
| Package / Case | 0805 (2012 Metric) |
| Part Status | Active |
| Response Time | Fast |
| DC Cold Resistance | 0.067 Ohm |
| Series | MFU |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Packaging | Digi-Reel® |
| ECCN | EAR99 |
| Voltage Rating - DC | 32V |
| Size / Dimension | 0.079" L x 0.049" W x 0.018" H (2.00mm x 1.25mm x 0.45mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Category | Circuit Protection |
| Manufacturer | Vishay Beyschlag |
| Family | Fuses |
| Melting I²t | 0.0101 |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating | 2A |
